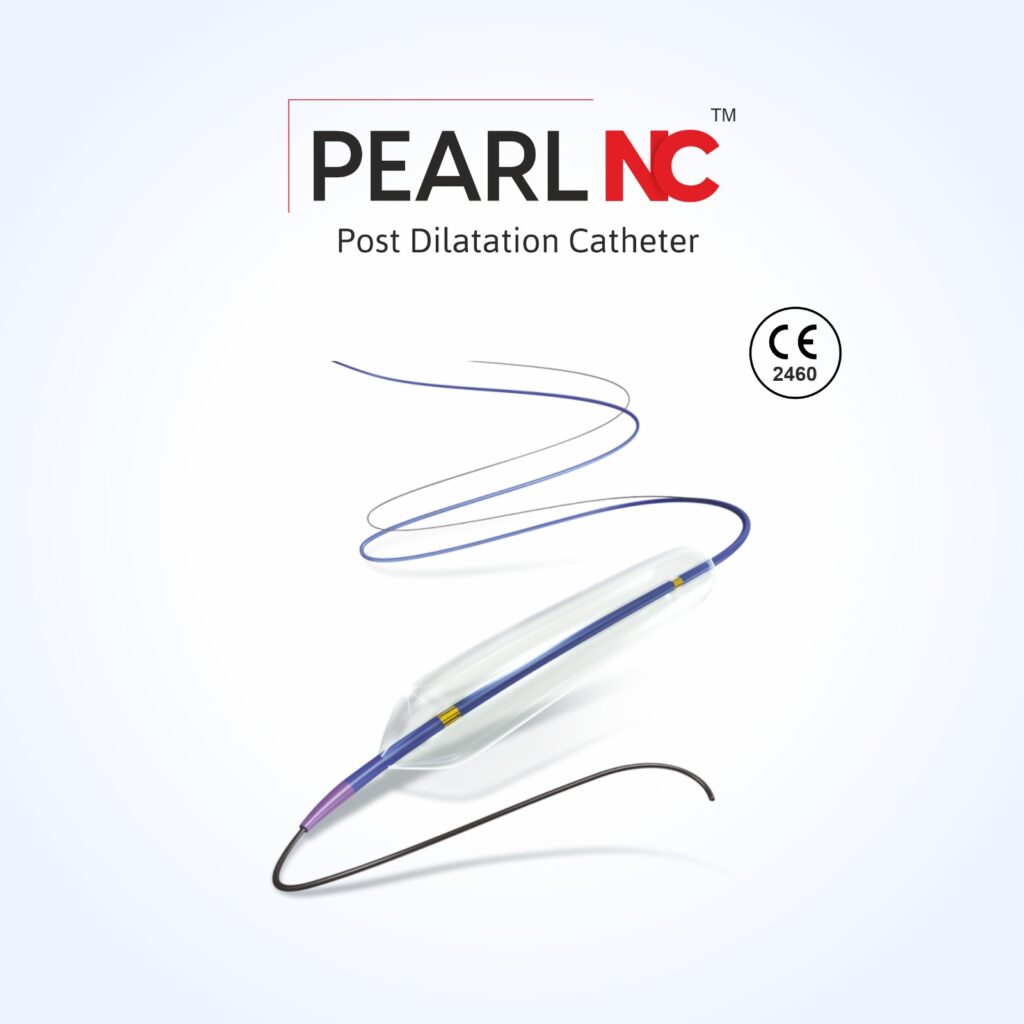

Pearl NC
(Non Compliant Balloon Catheters)

Features

• Tailor-made polymer with sleek finish to refrain collision with stent struts
• Direct torque transmission design allows superior steerability and control
• Pushability, trackability and excellent progressive flexibility of the distal area
• Ultra-smooth transition area and lubricious hydrophilic coating for friction free performance
• Ergonomic, transparent hub facilitates safe connection
• Proximal marker bands at 90 and 100 cm
• A parallel guide wire exit port guarantees best pushability and a better dye flow injection
• Lower profile, new jacketed hypo tube design and an exclusive blend of distal shaft materials for more responsive push and track
• Integrated markers and small shaft diameter facilitates contrast media injection in small size guiding catheters
• Rapid inflation/deflation and excellent rewrap characteristics.
  Reduced balloon profile
• Strong, durable and flexible proprietary balloon material provides high – pressure capability and a low growth profile
• Focused inflation force
• Controlled pushing of stent towards the vessel wall
• The extremely flexible tip helps the balloon catheter to reach tortuous anatomies
• Durable non compliant balloon designed to tackle multiple dilatation needs

Technical Specifications

Design	Rapid Exchange
Balloon compliance	Non- compliant
Distal Shaft (outer diameter)	0.90 mm
Proximal Shaft (outer diameter)	0.72 mm
Usable catheter length	1414 mm
Crossing profile	0.8 -1.4 mm
Minimum guide catheter compatible	0.058″ / 5 Fr
Guide wire compatible	0.014′
Nominal inflation pressure	10ATM
Rated Burst Pressure	18 ATM
Marker bands	Two platinum iridium markers
Tip profile	0.018″

Inflation Pressure (ATM)	Balloon Diameter by Size (mm)
	1.5	1.75	2	2.25	2.5	2.75	3	3.25	3.5	3.75	4	4.25	4.5	4.75	5
6	1.46	1.7	1.94	2.19	2.41	2.68	2.93	3.18	3.41	3.68	3.9	4.17	4.4	4.66	4.9
8	1.48	1.73	1.97	2.21	2.45	2.72	2.96	3.21	3.45	3.72	3.95	4.21	4.45	4.7	4.95
10*	1.5	1.75	2	2.25	2.5	2.75	3	3.25	3.5	3.75	4	4.25	4.5	4.75	5
12	1.52	1.77	2.03	2.28	2.54	2.79	3.05	3.3	3.55	3.79	4.05	4.3	4.56	4.8	5.08
14	1.55	1.79	2.06	2.32	2.57	2.83	3.1	3.34	3.6	3.84	4.11	4.35	4.61	4.86	5.15
16	1.57	1.82	2.09	2.35	2.61	2.87	3.15	3.37	3.65	3.89	4.16	4.4	4.67	4.92	5.22
18**	1.59	1.85	2.12	2.39	2.65	2.92	3.2	3.41	3.69	3.94	4.2	4.45	4.73	4.98	5.29
20	1.62	1.88	2.16	2.42	2.68	2.97	3.25	3.44	3.73	3.99	4.25	4.5	4.79	5.03	5.36
22	1.65	1.91	2.2	2.45	2.72	3.01	3.29	3.48	3.78	4.03	4.29	4.54	4.85	5.09	5.43

Product Ordering Information

Diameter (mm) /Length (mm)

1.50 mm

1.75 mm

2.00 mm

2.25 mm

2.50 mm

2.75 mm

3.00 mm

3.25 mm

3.50 mm

3.75 mm

4.00 mm

4.25 mm

4.50 mm

4.75 mm

5.00 mm

8

PNC 1500-08

PNC 1750-08

PNC 2000-08

PNC 2250-08

PNC 2500-08

PNC 2750-08

PNC 3000-08

PNC 3250-08

PNC 3500-08

PNC 3750-08

PNC 4000-08

PNC 4250-08

PNC 4500-08

PNC 4750-08

PNC 5000-08

9

PNC 1500-09

PNC 1750-09

PNC 2000-09

PNC 2250-09

PNC 2500-09

PNC 2750-09

PNC 3000-09

PNC 3250-09

PNC 3500-09

PNC 3750-09

PNC 4000-09

PNC 4250-09

PNC 4500-09

PNC 4750-09

PNC 5000-09

10

PNC 1500-10

PNC 1750-10

PNC 2000-10

PNC 2250-10

PNC 2500-10

PNC 2750-10

PNC 3000-10

PNC 3250-10

PNC 3500-10

PNC 3750-10

PNC 4000-10

PNC 4250-10

PNC 4500-10

PNC 4750-10

PNC 5000-10

11

PNC 1500-11

PNC 1750-11

PNC 2000-11

PNC 2250-11

PNC 2500-11

PNC 2750-11

PNC 3000-11

PNC 3250-11

PNC 3500-11

PNC 3750-11

PNC 4000-11

PNC 4250-11

PNC 4500-11

PNC 4750-11

PNC 5000-11

12

PNC 1500-12

PNC 1750-12

PNC 2000-12

PNC 2250-12

PNC 2500-12

PNC 2750-12

PNC 3000-12

PNC 3250-12

PNC 3500-12

PNC 3750-12

PNC 4000-12

PNC 4250-12

PNC 4500-12

PNC 4750-12

PNC 5000-12

13

PNC 1500-13

PNC 1750-13

PNC 2000-13

PNC 2250-13

PNC 2500-13

PNC 2750-13

PNC 3000-13

PNC 3250-13

PNC 3500-13

PNC 3750-13

PNC 4000-13

PNC 4250-13

PNC 4500-13

PNC 4750-13

PNC 5000-13

14

PNC 1500-14

PNC 1750-14

PNC 2000-14

PNC 2250-14

PNC 2500-14

PNC 2750-14

PNC 3000-14

PNC 3250-14

PNC 3500-14

PNC 3750-14

PNC 4000-14

PNC 4250-14

PNC 4500-14

PNC 4750-14

PNC 5000-14

15

PNC 1500-15

PNC 1750-15

PNC 2000-15

PNC 2250-15

PNC 2500-15

PNC 2750-15

PNC 3000-15

PNC 3250-15

PNC 3500-15

PNC 3750-15

PNC 4000-15

PNC 4250-15

PNC 4500-15

PNC 4750-15

PNC 5000-15

16

PNC 1500-16

PNC 1750-16

PNC 2000-16

PNC 2250-16

PNC 2500-16

PNC 2750-16

PNC 3000-16

PNC 3250-16

PNC 3500-16

PNC 3750-16

PNC 4000-16

PNC 4250-16

PNC 4500-16

PNC 4750-16

PNC 5000-16

17

PNC 1500-17

PNC 1750-17

PNC 2000-17

PNC 2250-17

PNC 2500-17

PNC 2750-17

PNC 3000-17

PNC 3250-17

PNC 3500-17

PNC 3750-17

PNC 4000-17

PNC 4250-17

PNC 4500-17

PNC 4750-17

PNC 5000-17

18

PNC 1500-18

PNC 1750-18

PNC 2000-18

PNC 2250-18

PNC 2500-18

PNC 2750-18

PNC 3000-18

PNC 3250-18

PNC 3500-18

PNC 3750-18

PNC 4000-18

PNC 4250-18

PNC 4500-18

PNC 4750-18

PNC 5000-18

19

PNC 1500-19

PNC 1750-19

PNC 2000-19

PNC 2250-19

PNC 2500-19

PNC 2750-19

PNC 3000-19

PNC 3250-19

PNC 3500-19

PNC 3750-19

PNC 4000-19

PNC 4250-19

PNC 4500-19

PNC 4750-19

PNC 5000-19

20

PNC 1500-20

PNC 1750-20

PNC 2000-20

PNC 2250-20

PNC 2500-20

PNC 2750-20

PNC 3000-20

PNC 3250-20

PNC 3500-20

PNC 3750-20

PNC 4000-20

PNC 4250-20

PNC 4500-20

PNC 4750-20

PNC 5000-20

21

PNC 1500-21

PNC 1750-21

PNC 2000-21

PNC 2250-21

PNC 2500-21

PNC 2750-21

PNC 3000-21

PNC 3250-21

PNC 3500-21

PNC 3750-21

PNC 4000-21

PNC 4250-21

PNC 4500-21

PNC 4750-21

PNC 5000-21

22

PNC 1500-22

PNC 1750-22

PNC 2000-22

PNC 2250-22

PNC 2500-22

PNC 2750-22

PNC 3000-22

PNC 3250-22

PNC 3500-22

PNC 3750-22

PNC 4000-22

PNC 4250-22

PNC 4500-22

PNC 4750-22

PNC 5000-22

23

PNC 1500-23

PNC 1750-23

PNC 2000-23

PNC 2250-23

PNC 2500-23

PNC 2750-23

PNC 3000-23

PNC 3250-23

PNC 3500-23

PNC 3750-23

PNC 4000-23

PNC 4250-23

PNC 4500-23

PNC 4750-23

PNC 5000-23

24

PNC 1500-24

PNC 1750-24

PNC 2000-24

PNC 2250-24

PNC 2500-24

PNC 2750-24

PNC 3000-24

PNC 3250-24

PNC 3500-24

PNC 3750-24

PNC 4000-24

PNC 4250-24

PNC 4500-24

PNC 4750-24

PNC 5000-24

25

PNC 1500-25

PNC 1750-25

PNC 2000-25

PNC 2250-25

PNC 2500-25

PNC 2750-25

PNC 3000-25

PNC 3250-25

PNC 3500-25

PNC 3750-25

PNC 4000-25

PNC 4250-25

PNC 4500-25

PNC 4750-25

PNC 5000-25

26

PNC 1500-26

PNC 1750-26

PNC 2000-26

PNC 2250-26

PNC 2500-26

PNC 2750-26

PNC 3000-26

PNC 3250-26

PNC 3500-26

PNC 3750-26

PNC 4000-26

PNC 4250-26

PNC 4500-26

PNC 4750-26

PNC 5000-26

27

PNC 1500-27

PNC 1750-27

PNC 2000-27

PNC 2250-27

PNC 2500-27

PNC 2750-27

PNC 3000-27

PNC 3250-27

PNC 3500-27

PNC 3750-27

PNC 4000-27

PNC 4250-27

PNC 4500-27

PNC 4750-27

PNC 5000-27

28

PNC 1500-28

PNC 1750-28

PNC 2000-28

PNC 2250-28

PNC 2500-28

PNC 2750-28

PNC 3000-28

PNC 3250-28

PNC 3500-28

PNC 3750-28

PNC 4000-28

PNC 4250-28

PNC 4500-28

PNC 4750-28

PNC 5000-28

29

PNC 1500-29

PNC 1750-29

PNC 2000-29

PNC 2250-29

PNC 2500-29

PNC 2750-29

PNC 3000-29

PNC 3250-29

PNC 3500-29

PNC 3750-29

PNC 4000-29

PNC 4250-29

PNC 4500-29

PNC 4750-29

PNC 5000-29

30

PNC 1500-30

PNC 1750-30

PNC 2000-30

PNC 2250-30

PNC 2500-30

PNC 2750-30

PNC 3000-30

PNC 3250-30

PNC 3500-30

PNC 3750-30

PNC 4000-30

PNC 4250-30

PNC 4500-30

PNC 4750-30

PNC 5000-30

31

PNC 1500-31

PNC 1750-31

PNC 2000-31

PNC 2250-31

PNC 2500-31

PNC 2750-31

PNC 3000-31

PNC 3250-31

PNC 3500-31

PNC 3750-31

PNC 4000-31

PNC 4250-31

PNC 4500-31

PNC 4750-31

PNC 5000-31

32

PNC 1500-32

PNC 1750-32

PNC 2000-32

PNC 2250-32

PNC 2500-32

PNC 2750-32

PNC 3000-32

PNC 3250-32

PNC 3500-32

PNC 3750-32

PNC 4000-32

PNC 4250-32

PNC 4500-32

PNC 4750-32

PNC 5000-32

33

PNC 1500-33

PNC 1750-33

PNC 2000-33

PNC 2250-33

PNC 2500-33

PNC 2750-33

PNC 3000-33

PNC 3250-33

PNC 3500-33

PNC 3750-33

PNC 4000-33

PNC 4250-33

PNC 4500-33

PNC 4750-33

PNC 5000-33

34

PNC 1500-34

PNC 1750-34

PNC 2000-34

PNC 2250-34

PNC 2500-34

PNC 2750-34

PNC 3000-34

PNC 3250-34

PNC 3500-34

PNC 3750-34

PNC 4000-34

PNC 4250-34

PNC 4500-34

PNC 4750-34

PNC 5000-34

35

PNC 1500-35

PNC 1750-35

PNC 2000-35

PNC 2250-35

PNC 2500-35

PNC 2750-35

PNC 3000-35

PNC 3250-35

PNC 3500-35

PNC 3750-35

PNC 4000-35

PNC 4250-35

PNC 4500-35

PNC 4750-35

PNC 5000-35

36

PNC 1500-36

PNC 1750-36

PNC 2000-36

PNC 2250-36

PNC 2500-36

PNC 2750-36

PNC 3000-36

PNC 3250-36

PNC 3500-36

PNC 3750-36

PNC 4000-36

PNC 4250-36

PNC 4500-36

PNC 4750-36

PNC 5000-36

37

PNC 1500-37

PNC 1750-37

PNC 2000-37

PNC 2250-37

PNC 2500-37

PNC 2750-37

PNC 3000-37

PNC 3250-37

PNC 3500-37

PNC 3750-37

PNC 4000-37

PNC 4250-37

PNC 4500-37

PNC 4750-37

PNC 5000-37

38

PNC 1500-38

PNC 1750-38

PNC 2000-38

PNC 2250-38

PNC 2500-38

PNC 2750-38

PNC 3000-38

PNC 3250-38

PNC 3500-38

PNC 3750-38

PNC 4000-38

PNC 4250-38

PNC 4500-38

PNC 4750-38

PNC 5000-38

39

PNC 1500-39

PNC 1750-39

PNC 2000-39

PNC 2250-39

PNC 2500-39

PNC 2750-39

PNC 3000-39

PNC 3250-39

PNC 3500-39

PNC 3750-39

PNC 4000-39

PNC 4250-39

PNC 4500-39

PNC 4750-39

PNC 5000-39

40

PNC 1500-40

PNC 1750-40

PNC 2000-40

PNC 2250-40

PNC 2500-40

PNC 2750-40

PNC 3000-40

PNC 3250-40

PNC 3500-40

PNC 3750-40

PNC 4000-40

PNC 4250-40

PNC 4500-40

PNC 4750-40

PNC 5000-40
