(Transcatheter Bicaval Valve)


Tricuspid Regurgitation & TRICVALVE®

Tricuspid Valve

Tricuspid Valve is one of the four valves present in the Human Heart. Tricuspid Valve is the Atrio ventricular Valve present between Right Atrium (RA) & Right Ventricle (RV). This valve regulates the flow of venous blood from RA to RV and prevents the back flow of the same.

For long, the tricuspid valve disease (in particular, Tricuspid Regurgitation) was considered less important when compared to the Aortic & Mitral Valve.

Tricuspid Regurgitation

Tricuspid regurgitation (TR) is a condition in which this valve does not close properly. Consequently, blood flows backward into the right upper heart chamber (atrium) when the right lower heart chamber (ventricle) contracts.

Tricuspid regurgitation may result from the structural changes caused to any or all of the tricuspid valve apparatus. Rheumatic Valve Disease remains the common cause of TR. The valves undergo fibrous thickening without commissural fusion, fused chordae and calcific deposits. Enlarged Ventricle also causes TR. We cannot discount the fact that the ventricle enlargement is because of TR.

Untreated TV Regurgitation can lead to right sided congestion and eventually right heart failure.

Shortness of breath, unexplained weakness, fatigue, swelling in the legs, ankle or feet, abdominal swelling, liver dysfunction and weight loss are the common symptoms associated with Tricuspid Valve regurgitation.

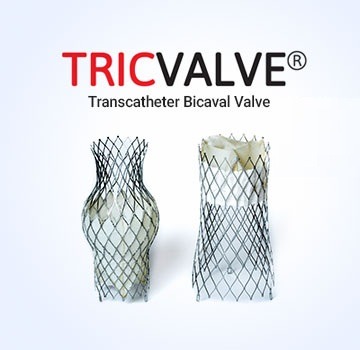

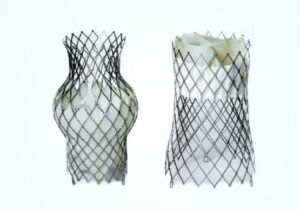

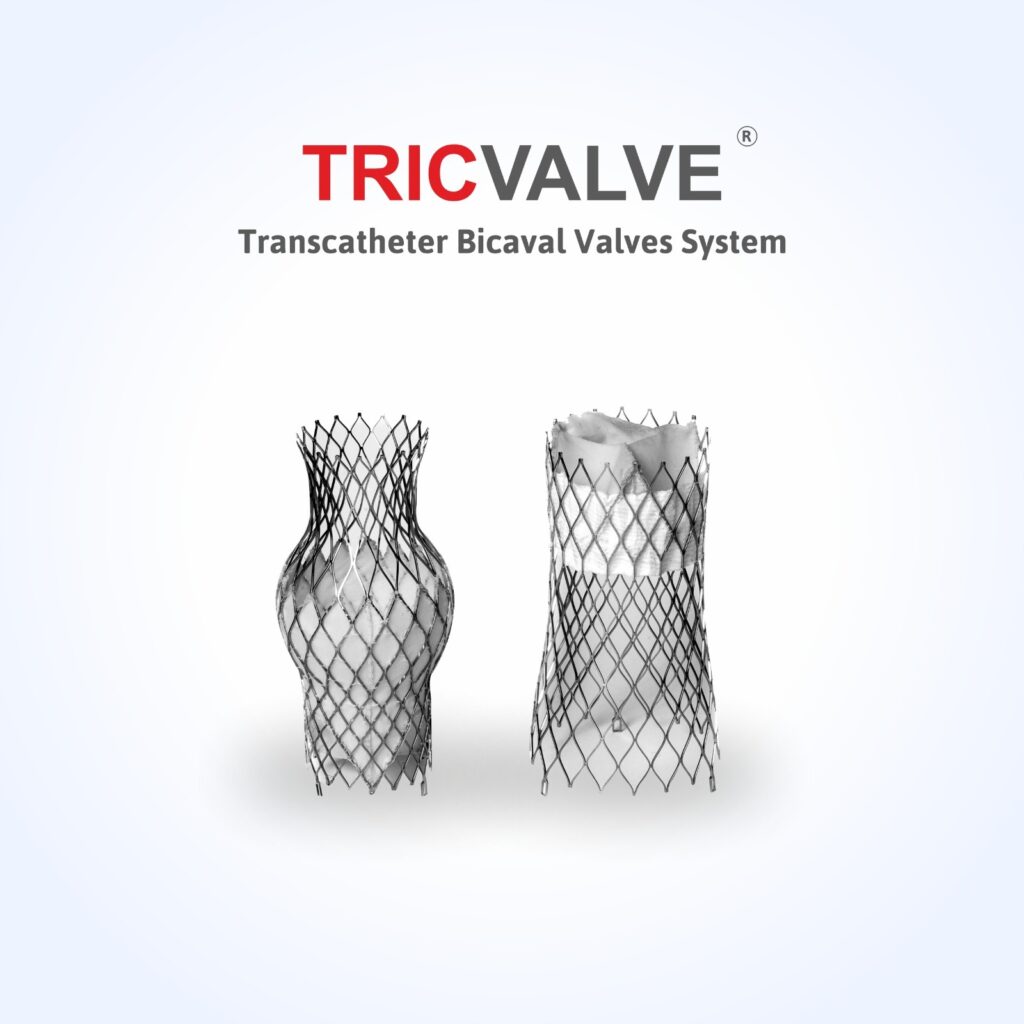

TRICVALVE® Transcatheter Bicaval Valves System

Transcatheter Bicaval Valves System is a boon for all those patients who cannot be operated through open-heart procedure because of any reason.

TricValve® Transcatheter Bicaval Valves is a system of two self-expanding biological valves for the treatment of patients with hemodynamically relevant tricuspid insufficiency and caval reflux. The prostheses are implanted percutaneously into the superior and inferior vena cava without disturbing the native tricuspid valve. It is especially intended for use in patients at extreme risk or who are inoperable for open surgical therapy.


Superior Vena Cava Valve

  • Available Sizes: 25 mm and 29 mm Valves
  • Treatment Range SVC 25: superior vena cava from 22 mm to 31 mm
  • Treatment Range SVC 29: superior vena cava from 27 mm to 34 mm
  • Frame Height (at relaxed state) SVC 25: 67 mm
  • Frame Height (at relaxed state) SVC 29: 69 mm
  • Leaflet Material: Bovine pericardium
  • Skirt Material: Bovine pericardium – long skirt to prevent para valvular leak (PVL)
  • Frame Material: Nitinol


Inferior Vena Cava Valve

  • Available Sizes: 31 mm and 35 mm valves
  • Treatment Range IVC 31: inferior vena cava from 24 mm to 31 mm
  • Treatment Range IVC 35: inferior vena cava from 28 mm to 35 mm
  • Frame Height (at relaxed state) IVC 31: 65 mm
  • Frame Height (at relaxed state) IVC 35: 65 mm
  • Leaflet Material: Bovine pericardium
  • Skirt Material: Bovine pericardium + PET – short skirt to prevent hepatic vein occlusion
  • Frame Material: Nitinol
