Features:

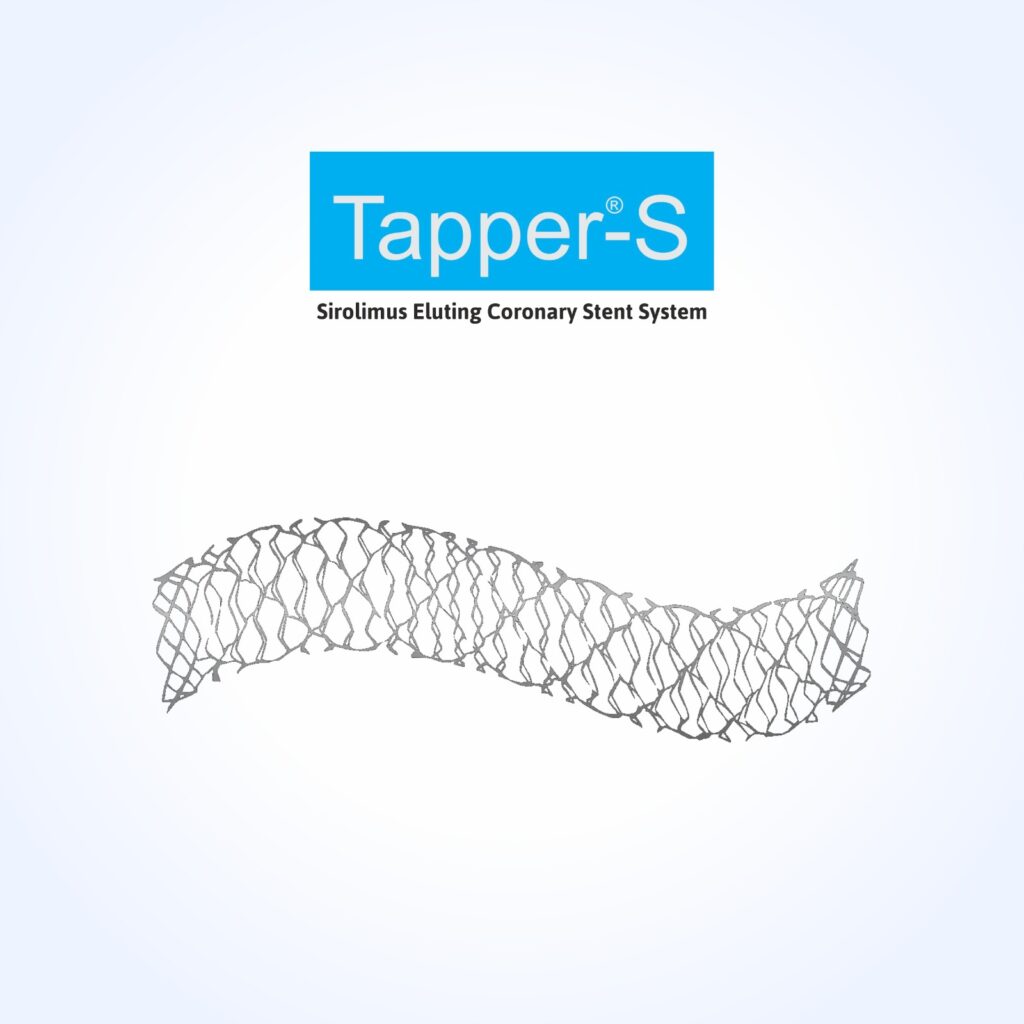

- Tapper-S stent is built on 59µm cobalt chromium platform
- Tapper-S ensures 0.29% foreshortening & <3% recoil
- Provide optimal radial strength, high degree of flexibility & excellent Scaffolding
- Sirolimus is an ideal choice considering that it acts on the common final pathway of cell division cycle without exceptional risk of necrosis induction
- Tapper-S has 1.00µg/mm² of Sirolimus loading on the stent, eluted within 30 to 40 days
- Biodegradable & Biocompatible Polymer base (PLLA & PLGA) which degrades simultaneously
- 2 µm of drug & polymer coating
Technical Specification:
| Parameter | Specification |
| Stent Diameters | 2.50, 2.75, 3.00, 3.50, 4.00mm |
| Stent Lengths | 8, 12, 16, 20, 24, 28, 32, 36, 40mm |
| Drug | Sirolimus 1.00µg/mm² |
| Polymers | PLLA & PLGA |
| Strut Thickness | 59 μm for all Diameters |
| Stent Platform | Cobalt-Chromium (Co-Cr) alloy |
| Delivery System | Rapid Exchange |
| Nominal Pressure | 8 ATM |
| Rated Burst Pressure | 16 ATM |
| Balloon overhang | 0.3mm |
| Shaft outer diameter | Proximal 1.95F / Distal 2.70F |
| Radio opaque markers | 2-Platinum /Iridium |
| Min. Guide Catheter ID | 5F / 0.056″ |
| Max. Guide Wire | 0.014″ (0.36mm) |
| Usable Catheter Length | 145 – 150 cm |
Ordering Information:
| Diameter (mm) / Length (mm) | 2.50 | 2.75 | 3.00 | 3.50 | 4.00 |
| 8 | S425008 | S427508 | S430008 | S435008 | S440008 |
| 12 | S425012 | S427512 | S430012 | S435012 | S440012 |
| 16 | S425016 | S427516 | S430016 | S435016 | S440016 |
| 20 | S425020 | S427520 | S430020 | S435020 | S440020 |
| 24 | S425024 | S427524 | S430024 | S435024 | S440024 |
| 28 | S425028 | S427528 | S430028 | S435028 | S440028 |
| 32 | S425032 | S427532 | S430032 | S435032 | S440032 |
| 36 | S425036 | S427536 | S430036 | S435036 | S440036 |
| 40 | S425040 | S427540 | S430040 | S435040 | S440040 |
